ECCN (US)

3A991.d

Part Status

Active

HTS

8542.39.00.01

Automotive

No

PPAP

No

Family Name

SmartFusion2

Process Technology

65nm

User I/Os

574

Number of I/O Banks

8

Operating Supply Voltage (V)

1.2

Logic Elements

146124

Number of Multipliers

240 (18x18)

Program Memory Type

Flash

Embedded Memory (Kbit)

4488

Total Number of Block RAM

236

EMACs

1

SERDES Channels

16

Device Logic Units

146124

Device Number of DLLs/PLLs

8

PCIe

4

Programmability

Yes

Reprogrammability Support

No

Copy Protection

Yes

In-System Programmability

No

Minimum Operating Supply Voltage (V)

1.14

Maximum Operating Supply Voltage (V)

1.26

I/O Voltage (V)

3.3|2.5|1.8|1.5|1.2

Minimum Operating Temperature (掳C)

-40

Maximum Operating Temperature (掳C)

100

Supplier Temperature Grade

Industrial

Packaging

Tray

Tradename

SmartFusion

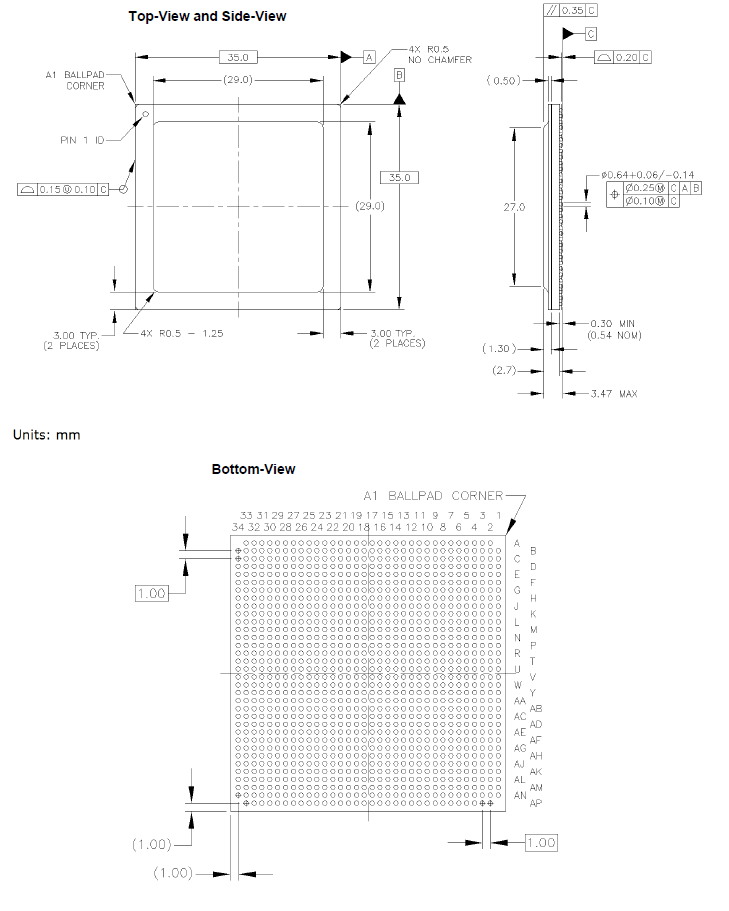

Supplier Package

FCBGA

Pin Count

1152

Standard Package Name

BGA

Mounting

Surface Mount

Package Height

2.7

Package Length

35

Package Width

35

PCB changed

1152

Lead Shape

Ball
